KB00450: TFDS Distribution Chassis IRIG Versions

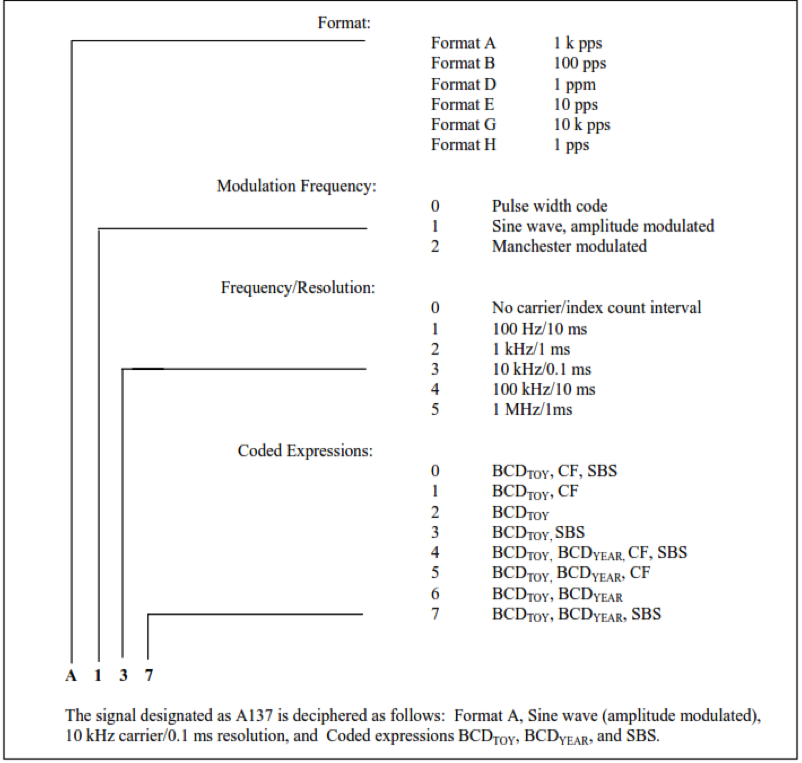

TFD-8000 IRIG Versions:
- Standard TFDS is IRIG B127
- Format B
- Sinewave Modulated
- 1KHz carrier
- BCDTOY, BCDYEAR, SBS
